Propeller Shaft System >> Tail Shaft Section >> Stern Tube Seal >> Oil Lubricated BearingsOil Lubricated Stern Tube Seals
|
| ||||||||||||
|

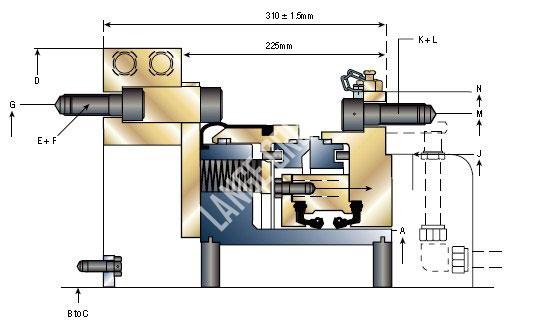

Oil Lubricated Stern Tube Seals | ||||||||||||
|
Product No. |
A |
B |
C |
D |
E |
F |
G |
J |
K |
L |
M |
N |
|
Seal size |
Shaft above |
Shaft to |
OD |
Quantity |
Bolts |
P.C.D. |
Bore |
Quantity |
Bolts |
P.C.D. |
OD | |
|
MPPE324-OG001 |
500 |
400 |
460 |
910 |
18 |
M24 |
785 |
665 |
18 |
M24 |
755 |
805 |
|
MPPE324-OG002 |
560 |
460 |
520 |
970 |
18 |
M24 |
845 |
725 |
18 |
M24 |
815 |
865 |
|
MPPE324-OG003 |
630 |
520 |
590 |
1040 |
18 |
M24 |
915 |
795 |
18 |
M24 |
885 |
935 |
|
MPPE324-OG004 |
710 |
590 |
670 |
1120 |
24 |
M24 |
995 |
875 |
24 |
M24 |
965 |
1015 |
|
MPPE324-OG005 |
800 |
670 |
760 |
1210 |
24 |
M24 |
1085 |
965 |
24 |
M24 |
1055 |
1105 |
|
Smaller and larger seal sizes are available as bespoke designs. | ||||||||||||
