Product Name |
Hinged H120 Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with hydrocarbon fireproof requirements, offshore platform | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Option |
Window | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

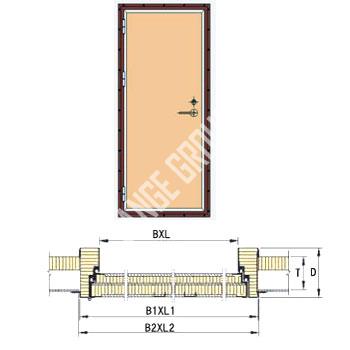

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Bulkhead | D | Weight | ||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | >80 | kg | |||||||
| MOUE010-HH001 | 600¡Á1650 | 720¡Á1770 | 725¡Á1775 | T+45 | 135 | ||||||
| MOUE010-HH002 | 650¡Á1650 | 770¡Á1770 | 775¡Á1775 | 141 | |||||||
| MOUE010-HH003 | 700¡Á1650 | 820¡Á1770 | 825¡Á1775 | 148 | |||||||
| MOUE010-HH004 | 600¡Á1700 | 720¡Á1820 | 725¡Á1825 | 138 | |||||||
| MOUE010-HH005 | 700¡Á1700 | 820¡Á1820 | 825¡Á1825 | 152 | |||||||
| MOUE010-HH006 | 700¡Á1750 | 820¡Á1870 | 825¡Á1875 | 156 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
