Product Name |
High Pressure Watertight Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Good water tightness and convenient opening | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for machinery space or other required places | ||||||||||
|
Material |
Steel | ||||||||||
|
Max.Pressure |
0.5MPa | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

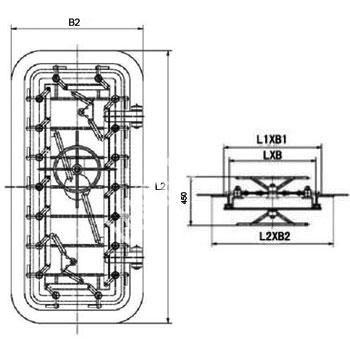

| Specifications | |||||||||||
| Product No. | Nominal Size | Cutout in Steel Wall | External Size | ||||||||
| B¡ÁL¡ÁR100 | B1¡ÁL1¡ÁR150 | B2¡ÁL2¡ÁR260 | |||||||||
| MOUE010-WP001 | 700¡Á1500 | 800¡Á1600 | 1020¡Á1820 | ||||||||
| MOUE010-WP002 | 700¡Á1400 | 800¡Á1500 | 1020¡Á1720 | ||||||||
| MOUE010-WP003 | 600¡Á1500 | 700¡Á1600 | 920¡Á1820 | ||||||||
| MOUE010-WP004 | 600¡Á1400 | 700¡Á1500 | 920¡Á1720 | ||||||||
| All watertight doors are available in aluminum, steel, stainless steel or a combination of these metals | |||||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
