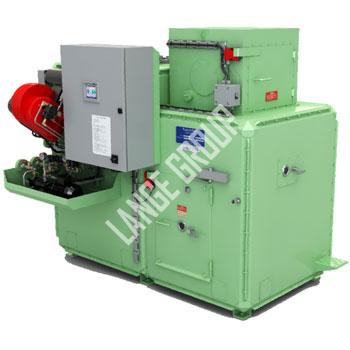

Marine Solid Waste Management System >> Marine Incinerator >> Dual-Function Incinerator >> Sludge Oil and Solid Waste TypeMarine Incinerator
 |
 |
| Product Name | Marine Incinerator |
| Product No. | MEPE402-SS006 |
| Waste Type | Solid Waste & Sludge Oil |
| Mounting Type | Vertically |
| Power Supply | 440V/60HZ or 380V/50HZ(other options available) |
| Calorie Capacity | Max.730000 kcal/h(850 KW) |
| Corresponding To | Max.95 l/h sludge oil (IMO defined sludge) |
| Solid Waste | continuous charging |
| Combustion Chamber Temperature | Max.1200C° |
| Surface Temperature | 15C° above ambient temp. |
| Flue Gas Temperature | 350C° |
| Flue Gas Back Pressure | Max.150mm W.C. |
| Combustion Chamber Negative Pressure | from 8 to 15 mm W.C. |
| Max.Rated EL.Power | approx.27 KW |
