Product Name |
Aluminum Sliding Cabin Door | ||||||||||
|
Description |
Meet SOLAS, ISO9001-2000 | ||||||||||
|
Designed according to international standards with low noisy and light opening | |||||||||||
|
Application |
For interior use | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||
|
Option |
Double Door Leaf/Kickout Panel | ||||||||||
|
Specifications |
Door Plate |
Aluminum/Stainless Steel | |||||||||
|
Door Frame |
Stainless Steel/Steel | ||||||||||
|
Core Material |
Rock Wool | ||||||||||

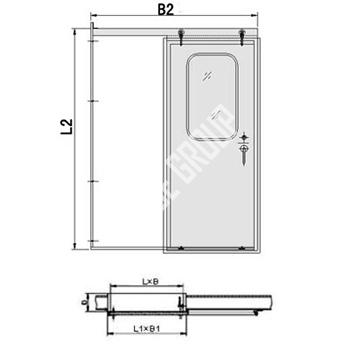

| Product No. | Nominal Size | Cutout in Steel Wall | External Size | Weight | |||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | kg | ||||||||
| MOUE010-LS001 | 600¡Á1600 | 665¡Á1665 | 1200¡Á1760 | 29 | |||||||
| MOUE010-LS002 | 650¡Á1650 | 715¡Á1715 | 1300¡Á1810 | 31 | |||||||
| MOUE010-LS003 | 700¡Á1750 | 765¡Á1815 | 1400¡Á1910 | 33 | |||||||
| MOUE010-LS004 | 800¡Á1750 | 865¡Á1815 | 1600¡Á1910 | 36 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
