Marine Door >> Steel Door >> Soundproof Steel Door
 |
 | ||||||||||
|
Product Name |
Soundproof Steel Door | ||||||||||
|
Description |
Meet SOLAS ,ISO 9001-2008 | ||||||||||
|
Application |
Apply for working space on vessel with sound reduction requirements like machinery space, engine control room, etc. | ||||||||||
|
Sound Reduction |
47dB | ||||||||||
|
Option |
Window/Gastight Founction | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

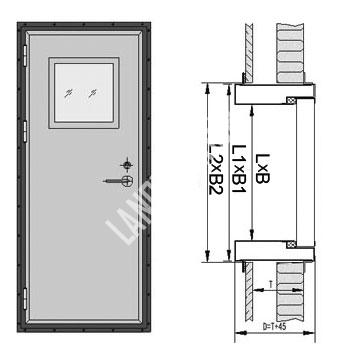

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Door | Cutout in Steel Wall | D>=80 | Weight | ||||||
| W¡ÁH | W1¡ÁH1 | W2¡ÁH2 | standard | gastight | kg | ||||||
| MOUE010-SP001 | 600¡Á1650 | 694¡Á1744 | 700¡Á1750 | T+45 | T+50 | 68 | |||||
| MOUE010-SP002 | 700¡Á1750 | 794¡Á1844 | 800¡Á1850 | 73 | |||||||
| MOUE010-SP003 | 800¡Á1650 | 894¡Á1744 | 900¡Á1750 | 73 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
