Propeller Shaft System >> Tail Shaft Section >> Stern Tube Bearing >> Rubber BearingsStern Tube Rubber Bearings

Rubber Bearings

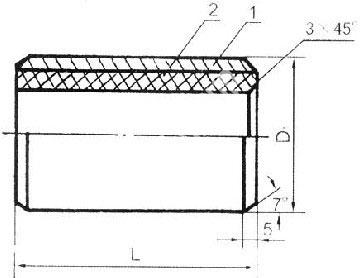

1-rubber liner 2-copper liner

Sign example: Norminal dia. D=40mm Length L=120mm Rubber bearing 40*120 CB 769-86

Product No. Bearing diameter D Outside diameter of copper bush D1 Length(mm) L Weight(Kg)
mm mm Normal type Extended type Normal type Extended type
MPPE323-RB001 40 64 120 140 1.010 1.176
MPPE323-RB002 45 68 135 155 1.114 1.279
MPPE323-RB003 50 74 150 170 1.488 1.686
MPPE323-RB004 55 78 150 170 1.620 1.496
MPPE323-RB005 60 84 165 210 1.729 2.200
MPPE323-RB006 65 88 180 230 1.795 2.294
MPPE323-RB007 70 96 190 250 2.733 3.605
MPPE323-RB008 75 102 210 270 3.255 4.185
MPPE323-RB009 80 106 220 290 3.661 4.815
MPPE323-RB010 85 114 240 300 4.551 5.685
MPPE323-RB011 90 120 250 320 5.367 6.870
MPPE323-RB012 95 125 260 340 5.817 7.607
MPPE323-RB013 100 130 280 350 6.511 8.164
MPPE323-RB014 105 137 290 370 7.681 9.800
MPPE323-RB015 110 144 300 385 8.953 11.490
MPPE323-RB016 120 156 330 420 11.963 15.226
MPPE323-RB017 125 163 340 440 14.227 18.412
MPPE323-RB018 130 170 360 450 17.193 21.492
MPPE323-RB019 140 182 380 480 19.663 24.847
MPPE323-RB020 150 194 410 520 24.575 31.168
MPPE323-RB021 160 206 440 550 30.240 37.800
MPPE323-RB022 170 218 460 580 35.956 45.336
MPPE323-RB023 180 228 500 620 38.594 47.857
MPPE323-RB024 190 238 520 650 42.053 52.567
MPPE323-RB025 200 250 550 680 50.162 62.019

Note: The size of the table are for reference only,the products can be manufactured according to customers' request. and the maximum tolerence of bearing length is 1.5 mm .
