Marine Door >> Steel Door >> Double-leaf Steel Door
 |
 | ||||||||||
|
Product Name |
Double-leaf Steel Door | ||||||||||
|
Description |
Meet SOLAS ,ISO 9001-2008 | ||||||||||
|
Application |
Apply for work cabins etc. of various ships and structures at sea | ||||||||||
|
Option |
A60 fireproof function | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||
| Specifications | |||||||||||

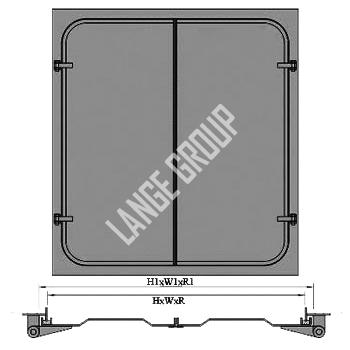

| Product No. | Nominal Size | Cutout in Steel Wall | Leaf Thickness | Dog NO. | |||||||
| W¡ÁH | W1¡ÁH1 | ||||||||||
| MOUE010-SD001 | 1200¡Á1900 | 1300¡Á2000 | 8~16 | 6,8,10 | |||||||
| MOUE010-SD002 | 1400¡Á1900 | 1500¡Á2000 | |||||||||
| MOUE010-SD003 | 1600¡Á1900 | 1700¡Á2000 | |||||||||
| MOUE010-SD004 | 1200¡Á2000 | 1300¡Á2100 | |||||||||
| MOUE010-SD005 | 1400¡Á2000 | 1500¡Á2100 | |||||||||
| MOUE010-SD006 | 1600¡Á2000 | 1700¡Á2100 | |||||||||
| MOUE010-SD007 | 1400¡Á2200 | 1500¡Á2300 | |||||||||
| MOUE010-SD008 | 1600¡Á2200 | 1700¡Á2300 | |||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
