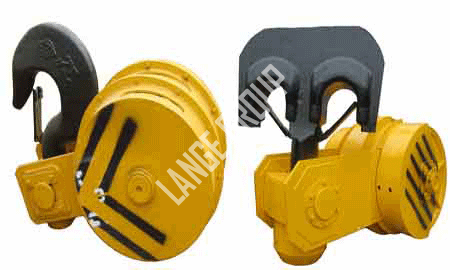

Wire Rope Blocks >> Heavy Crane Block-Hook Type
 |
 | ||||||
|---|---|---|---|---|---|---|---|
| Product Name | Heavy Crane Block-Hook Type | ||||||
| Product Material | Steel | ||||||
| Product No. | Type | Capacity |
Hook Material |
Sheave ?Material |
Sheave Dia. |
Factor | Weight(kg) |
| MHAE071-HB001 | DG Series G Series | 3.2t |
20 16Mn DG20 |
HT QT Q235 |
300/350 | 4 | 70 |
| MHAE071-HB002 | 5t | 430/450 | 4 | 128 | |||
| MHAE071-HB003 | 10t | 430/450 | 6 | 230 | |||
| MHAE071-HB004 | 16t | 565 | 6 | 377 | |||
| MHAE071-HB005 | 20t | 565 | 8 | 489 | |||
| MHAE071-HB006 | 32t | 680 | 8 | 835 | |||
| MHAE071-HB007 | 50t | 785 | 10 | 1346 | |||
| MHAE071-HB008 | 75t | 920 | 10 | 2500 | |||
| MHAE071-HB009 | 80t | 920 | 10 | 3265 | |||
| MHAE071-HB010 | 100t | 920/1120 | 10 | 4964 | |||
| MHAE071-HB011 |
100t Double Hook |
890 | 12 | 4425 | |||
| MHAE071-HB012 |
160t Double Hook |
822/1010 | 16 | 5629 | |||
| MHAE071-HB013 |
200t Double Hook |
1180 | 16/20 | 8500 | |||
