Propeller Shaft System >> Tail Shaft Section >> Stern Tube Bearing >> White Metal BearingsStern Tube White Metal Bearings

Stern Tube White Metal Bearings

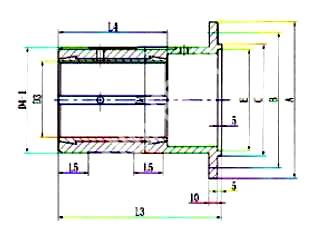

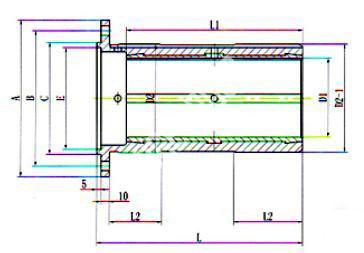

Product No. Type D1 D2 D3 D4 L L1 L2 L3 L4 L5 n Weight(Kg)
mm mm mm mm mm mm mm mm mm mm Forward Aft
MPPE323-BWF001 WMF80 80 118 78 116 220 185 50 175 110 30 6 7 10
MPPE323-BWF002 WMF90 90 128 88 126 245 210 60 195 130 35 6 18.3 12
MPPE323-BWF003 WMF100 100 138 98 136 275 240 70 215 150 40 8 10 15
MPPE323-BWF004 WMF110 110 148 108 146 295 260 80 235 170 40 8 11.5 18
MPPE323-BWF005 WMF120 120 158 118 156 315 280 90 245 180 45 8 13.7 21
MPPE323-BWF006 WMF130 130 168 128 166 345 310 90 265 200 50 8 16 25

Note:The size of this table are for reference only.the products can be manufactured accoding to customers' request .
