Marine Pipe Fitting >> Cross >> Bronze >> Socket Broze Cross
Product Name Socket Cross

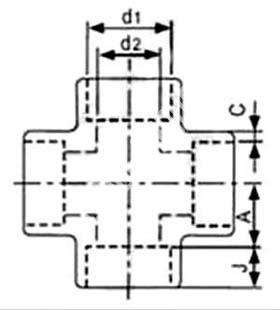

Product No. Nominal Pipe SocketDepth Socket Dim. Wall Thickness Center to Bottom of Socket
A
C Crosses
DN NPS J d1 3000LB 6000LB 9000LB 3000LB 6000LB 9000LB
Sch80 Sch160 XXS Sch80 Sch160 XXS
MFVE605-SC001 6 1/8 10 10.7 3.2 3.5 - 11 11 -
MFVE605-SC002 8 1/4 10 14.1 3.3 4 - 11 15 -
MFVE605-SC003 10 3/8 10 17.5 3.5 4.4 - 13 15 -
MFVE605-SC004 15 1/2 10 21.8 4.1 5.2 8.2 16 19 25
MFVE605-SC005 20 3/4 13 27.4 4.3 6.1 8.6 19 22 28
MFVE605-SC006 25 1 13 34.2 5 7 10 22 27 32
MFVE605-SC007 32 1 1/4 13 42.9 5.3 7 10.6 27 32 35
MFVE605-SC008 40 1 1/2 13 48.3 5.6 7.8 11.2 32 38 38
MFVE605-SC009 50 2 13 61.1 6.1 9.5 12.2 38 41 41
MFVE605-SC010 65 2 1/2 16 76.9 7.7 12.5 - 41 57 -
MFVE605-SC011 80 3 16 89.8 8.3 13.8 - 57 64 -
MFVE605-SC012 100 4 19 115.5 9.4 - - 66 - -
