Wire Rope Blocks >> Standard Reeve Crane Block

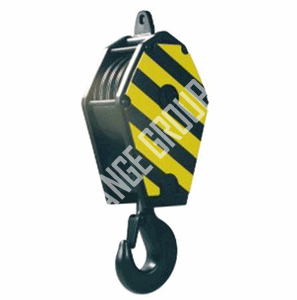

Product Name	Standard Reeve Crane Block
Product Material	Steel

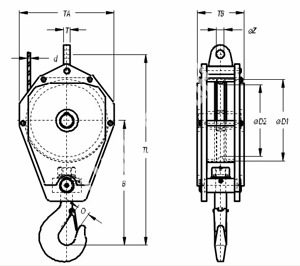

Produce No.	WLL	Wire d	Dimensions (mm)									Weight
Produce No.	(t)	(mm)	D1	D2	B	O	TA	TB	TL	T	Z	(kg)
1 Sheave
MHAE071-SR001	8	11-12.	280	250	460	49	360	195	730	22	27	100
MHAE071-SR002	10	13-14	320	285	550	55	400	195	850	28	32	125
MHAE071-SR003	12	15-16	365	320	590	55	450	215	915	28	32	170
MHAE071-SR004	16	17-18	410	355	665	59	500	215	1005	35	37	210
MHAE071-SR005	20	19-20	460	400	740	69	570	230	1120	40	43	250
MHAE071-SR006	25	21-22	515	450	770	69	600	230	1180	40	43	300
MHAE071-SR007	32	24-26	595	520	900	76	700	230	1365	45	52	400
MHAE071-SR008	40	28-29	650	570	975	84	750	313	1515	50	59	600
MHAE071-SR009	50	30-32	720	630	1025	97	825	333	1495	60	65	850
2 Sheaves
MHAE071-SR010	WLL	Wire	Dimensions (mm)									Weight
MHAE071-SR011	(t)	(mm)	D1	D2	B	O	TA	TB	TL	T	Z	(kg)
MHAE071-SR012	16	11-12.	300	260	575	59	400	165	860	28	32	130
MHAE071-SR013	16	15-16	320	285	585	59	400	165	885	28	32	130
MHAE071-SR014	20	15-16	320	285	660	69	400	165	960	28	32	130
MHAE071-SR015	20	17-19	320	285	660	69	400	165	960	28	32	150
MHAE071-SR016	20	15-16	365	320	690	69	450	180	1115	28	32	160
MHAE071-SR017	29	17-19	410	355	760	69	500	250	1100	35	37	250
MHAE071-SR018	20	24-26	460	400	825	69	570	180	1180	45	52	180
MHAE071-SR019	25	24-26	460	400	825	69	570	180	1205	45	52	200
MHAE071-SR020	29	20-22	460	400	750	69	570	240	1130	40	43	320
MHAE071-SR021	30	24-26	515	450	850	69	605	220	1275	45	52	300
MHAE071-SR022	50	24-26	515	450	850	84	605	325	1275	45	52	550
MHAE071-SR023	63	27-28	596	528	1085	97	710	405	1565	50	59	980
MHAE071-SR024	80	27-28	596	528	1150	110	710	440	1610	50	59	1000
3 Sheaves
MHAE071-SR025	WLL	Wire d	Dimensions (mm)									Weight
MHAE071-SR026	(t)	(mm)	D1	D2	B	O	TA	TB	TL	T	Z	(kg)
MHAE071-SR027	16	11-12.	280	250	640	59	360	220	910	22	27	175
MHAE071-SR028	20	13-14	320	285	700	69	400	230	995	28	32	200
MHAE071-SR029	25	15-16	365	320	725	69	450	230	1045	28	32	250
MHAE071-SR030	32	17-18	410	355	820	76	500	250	1160	35	37	310
MHAE071-SR031	40	19-20	460	400	940	84	570	292	1320	40	43	460
MHAE071-SR032	50	21-22	515	450	945	97	600	333	1355	40	43	600
MHAE071-SR033	63	24-26	595	520	980	97	700	333	1445	45	52	850
MHAE071-SR034	80	28-29	650	570	1195	110	750	372	1615	50	59	1100
MHAE071-SR035	100	30-32	720	630	1300	132	825	392	1770	60	65	1400
4 Sheaves
MHAE071-SR036	WLL	Wire	Dimensions									Weight
MHAE071-SR037	(t)	(mm)	D1	D2	B	O	TA	TB	TL	T	Z	(kg)
MHAE071-SR038	35	15-16	320	285	670	75	400	312	980	28	32	260
MHAE071-SR039	50	17-19	410	355	835	84	500	363	1175	25	37	475
MHAE071-SR040	50	20-22	410	355	835	84	500	363	1185	40	43	475
MHAE071-SR041	63	20-22	465	400	915	97	570	350	1295	40	43	525
MHAE071-SR042	63	20-22	515	450	950	97	600	400	1360	40	43	725
MHAE071-SR043	80	24-26	515	450	1065	110	600	517	1455	40	52	960
MHAE071-SR044	100	27-28	596	528	1290	132	710	462	1765	40	59	1250
5 Sheaves
MHAE071-SR045	WLL	Wire	Dimensions (mm)									Weight
MHAE071-SR046	(t)	(mm)	D1	D2	B	O	TA	TB	TL	T	Z	(kg)
MHAE071-SR047	25	11-12.	280	250	650	47	360	310	850	22	27	250
MHAE071-SR048	32	13-14	320	285	725	57	400	310	950	28	32	300
MHAE071-SR049	40	15-16	365	320	800	60	450	440	1035	28	32	420
MHAE071-SR050	50	17-18	410	355	840	60	500	440	1100	35	37	500
MHAE071-SR051	63	19-20	460	400	880	63	570	450	1175	40	43	620
MHAE071-SR052	80	21-22	515	450	1100	73	600	450	1425	40	43	750
MHAE071-SR053	100	24-26	595	520	1250	87	680	450	1600	45	52	900
MHAE071-SR054	125	28-29	650	570	1350	108	750	575	1750	50	59	1250
MHAE071-SR055	160	30-32	720	630	1540	112	850	575	2000	60	65	1600
6 Sheaves
MHAE071-SR056	WLL	Wire	Dimensions (mm)									Weight
MHAE071-SR057	(t)	(mm)	D1	D2	B	O	TA	TB	TL	T	Z	(kg)
MHAE071-SR058	72	17-19	460	400	1000	110	570	397	1350	30	37	650
MHAE071-SR059	80	20-22	515	450	1090	110	600	612	1480	40	43	1200
MHAE071-SR060	125	24-26	596	528	1250	137	710	652	1690	45	52	1750
MHAE071-SR061	160	24-26	596	528	1325	167	710	842	1825	45	52	2970
MHAE071-SR062	200	27-28	596	528	1525	188	710	882	2035	50	59	3680
Note: 1. Standard fitted With Becket, Cylindrical Roller bearing and revving guide. 2. Standard fitted With Crosby type of swivel only Hook (319AN style), including safety latch and split pin. 3. Standard painted yellow (no striping). 4. This crane Block may be used With 2 lines only as well. 5. Third party testing With certification available upon request. 6. Minimum Ultimate Strength = 4 x WLL.
