Marine Pipe Fitting >> Flanges >> GB/T Flanges >> Integral FlangesGB/T 9113 Slip-On Flanges With Raised Face
 |
 | ||||||||||
| Product Name | GB/T 9113 Slip-On Flanges With Raised Face | ||||||||||

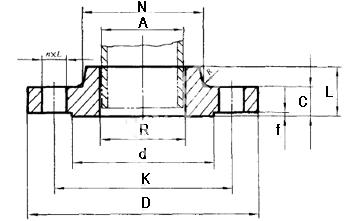

| Product No. | DN | D | K | L | Bolt No. | Bolt Size | d | f | C | N | k |
| MFVE602-GB01 | 10 | 75 | 50 | 11 | 4 | M10 | 33 | 2 | 12 | 20 | 3 |
| MFVE602-GB02 | 15 | 80 | 55 | 11 | 4 | M10 | 38 | 2 | 12 | 26 | 3 |
| MFVE602-GB03 | 20 | 90 | 65 | 11 | 4 | M10 | 48 | 2 | 14 | 34 | 4 |
| MFVF602-GB04 | 25 | 100 | 75 | 11 | 4 | M10 | 58 | 2 | 14 | 44 | 4 |
| MFVE602-GB05 | 32 | 120 | 90 | 14 | 4 | M12 | 69 | 2 | 16 | 54 | 5 |
| MFVE602-GB06 | 40 | 130 | 100 | 14 | 4 | M12 | 78 | 2 | 16 | 64 | 5 |
| MFVE602-GB07 | 50 | 140 | 110 | 14 | 4 | M12 | 88 | 2 | 16 | 74 | 5 |
| MFVE602-GB08 | 65 | 160 | 130 | 14 | 4 | M12 | 108 | 2 | 16 | 94 | 6 |
| MFVE602-GB09 | 80 | 190 | 150 | 18 | 4 | M16 | 124 | 2 | 18 | 110 | 6 |
| MFVE602-GB10 | 100 | 210 | 170 | 18 | 4 | M16 | 144 | 2 | 18 | 130 | 6 |
