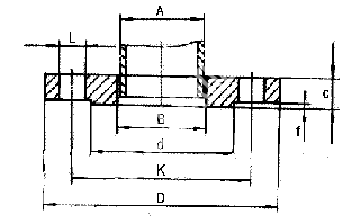

Marine Pipe Fitting >> Flanges >> GB/T Flanges >> Integral FlangesGB/T 9119 Slip-On welding Flanges With Raised Face
 |
 | ||||||||||
| Product Name | GB 9119.7 Slip-On welding Flanges With Raised Face | ||||||||||
| Product NO. | DN | A | D | k | L | Bolt | Sealing face | C | B | ||
| Number | Bolt size | d | f | ||||||||
| MFVE601-GB01 | 10 | 17.2 | 90 | 60 | 14 | 4 | M12 | 41 | 2 | 14 | 18 |
| MFVE601-GB02 | 15 | 21.3 | 95 | 65 | 14 | 4 | M12 | 46 | 2 | 14 | 22 |
| MFVE601-GB03 | 20 | 26.9 | 105 | 75 | 14 | 4 | M12 | 56 | 2 | 16 | 27.5 |
| MFVE601-GB04 | 25 | 33.7 | 115 | 85 | 14 | 4 | M12 | 65 | 3 | 16 | 34.5 |
| MFVE601-GB05 | 32 | 42.4 | 140 | 100 | 18 | 4 | M16 | 76 | 3 | 18 | 43.5 |
| MFVE601-GB06 | 40 | 48.3 | 150 | 110 | 18 | 4 | M16 | 84 | 3 | 18 | 49.5 |
| MFVE601-GB07 | 50 | 60.3 | 165 | 125 | 18 | 4 | M16 | 99 | 3 | 20 | 61.5 |
| MFVE601-GB08 | 65 | 76.1 | 185 | 145 | 18 | 4 | M16 | 118 | 3 | 20 | 77.5 |
| MFVE601-GB09 | 80 | 88.9 | 200 | 160 | 18 | 4 | M16 | 132 | 3 | 20 | 90.5 |
