Product Name |
Aluminum Hollow Cabin Door with Window | ||||||||||
|
Description |
Meet SOLAS, ISO9001-2000 | ||||||||||
|
Designed with new structure & good weather tightness | |||||||||||
|
Application |
Applied to ship cabin, floating construction and gateway with class C fireproof requirements. | ||||||||||
|
Material |
Aluminum | ||||||||||
|
Option |
Louver/kick-out panel | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||
| Specifications | |||||||||||

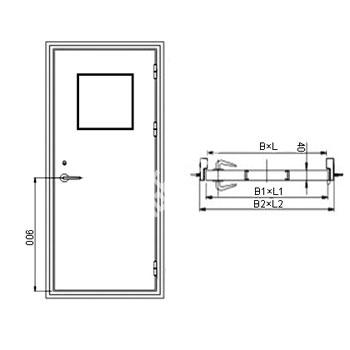

| Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | D | Weight | ||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | ¡Ý 75 | kg | |||||||
| MOUE010-LW001 | 600¡Á1600 | 680¡Á1680 | 686¡Á1686 | T+45 | 26.72 | ||||||
| MOUE010-LW002 | 650¡Á1650 | 730¡Á1730 | 736¡Á1736 | 28.41 | |||||||
| MOUE010-LW003 | 700¡Á1750 | 780¡Á1730 | 786¡Á1736 | 29.8 | |||||||
| MOUE010-LW004 | 800¡Á1750 | 880¡Á1830 | 886¡Á1836 | 31.73 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
