Product Name |
Sliding Class C Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with fireproof requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Option |
Window / Hose-port | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

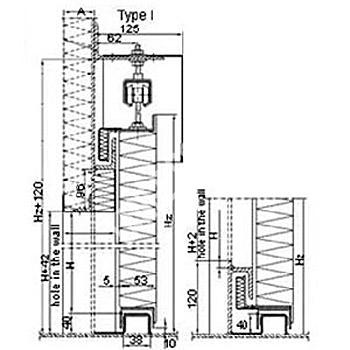

| Specifications | |||||||||||

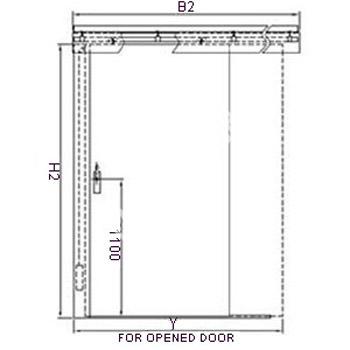

| Product No. | Clear Opening | External Size | Opening Direction | ||||||||
| B¡ÁH | B2¡ÁH2 | ||||||||||
| MOUE010-CS001 | 700¡Á1900 | 2000¡Á2195 | L/R | ||||||||
| MOUE010-CS002 | 800¡Á1950 | 2200¡Á2450 | |||||||||
| MOUE010-CS003 | 1000¡Á2000 | 2400¡Á2295 | |||||||||
| MOUE010-CS004 | 1050¡Á2050 | 2700¡Á2345 | |||||||||
| All our C class fire doors can be manufactured according to A class fireproof standard | |||||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
