Product Name |
Hinged B15 Fire Door (Single) | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with fireproof requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Optional Parts |
Louver / Kick-out panel | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

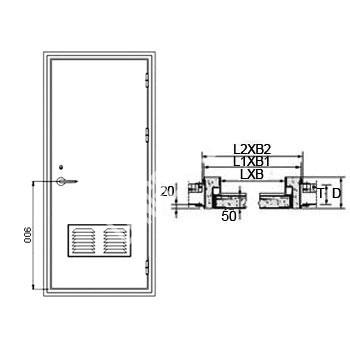

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | Frame Thickness/mm | Weight | ||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | D | kg | |||||||
| MOUE010-BB001 | 600¡Á1650 | 680¡Á1730 | 685¡Á1735 | T+50 | 95.01 | ||||||
| MOUE010-BB002 | 600¡Á1700 | 680¡Á1780 | 685¡Á1785 | 97.46 | |||||||
| MOUE010-BB003 | 650¡Á1650 | 730¡Á1730 | 735¡Á1735 | 100.1 | |||||||
| MOUE010-BB004 | 650¡Á1700 | 730¡Á1780 | 735¡Á1785 | 102.56 | |||||||
| MOUE010-BB005 | 700¡Á1650 | 780¡Á1730 | 785¡Á1735 | 104.93 | |||||||
| MOUE010-BB006 | 700¡Á1700 | 780¡Á1780 | 785¡Á1785 | 107.71 | |||||||
| MOUE010-BB007 | 700¡Á1750 | 780¡Á1830 | 785¡Á1835 | 110.35 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
