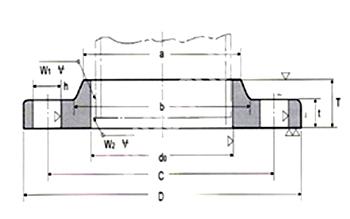

Marine Pipe Fitting >> Flanges >> JIS Flanges >> Integral FlangesJIS B2210-1986 Slip-On Welding Flanges
 |
 | |||||||||||
| Product Name | Slip-On Welding Steel Pipe Flanges | |||||||||||
| Standard | JIS B2210-1986 | |||||||||||
| Product No. | Norminal Bore | PipeOutside Diam | Flanges | Bolt Size No. | Welding | |||||||
| d0 | D | t | T | C | Holes No. | h | W1 | W2 | ||||
| MFVE602-JIS01 | 450 | 457.2 | 460 | 605 | 22 | & | 555 | 16 | 23 | M20 | 12 | 7 |
| MFVE602-JIS02 | 500 | 508 | 511 | 655 | 22 | & | 605 | 20 | 23 | M20 | 12 | 7 |
| MFVE602-JIS03 | 550 | 558.8 | 562 | 720 | 24 | & | 665 | 20 | 25 | M22 | 12 | 7 |
| MFVE602-JIS04 | 600 | 609.6 | 613 | 770 | 24 | & | 715 | 20 | 25 | M22 | 12 | 7 |
| MFVE602-JIS05 | 650 | 660.4 | 664 | 825 | 24 | & | 770 | 24 | 25 | M22 | 12 | 7 |
| MFVE602-JIS06 | 700 | 711.2 | 715 | 875 | 24 | - | 820 | 24 | 27 | M22 | 12 | 7 |
| MFVE602-JIS07 | 750 | 762 | 766 | 945 | 24 | - | 880 | 24 | 27 | M24 | 12 | 7 |
| MFVE602-JIS08 | 800 | 812.8 | 817 | 995 | 24 | - | 930 | 24 | 27 | M24 | 12 | 7 |
| MFVE602-JIS09 | 850 | 863.6 | 868 | 1045 | 24 | - | 980 | 24 | 27 | M24 | 12 | 7 |
| MFVE602-JIS10 | 900 | 914.4 | 919 | 1095 | 24 | - | 1030 | 24 | 27 | M24 | 12 | 7 |
| MFVE602-JIS11 | 1000 | 1016 | 1021 | 1195 | 26 | - | 1130 | 28 | 27 | M24 | 12 | 7 |
| MFVE602-JIS12 | 1100 | 1117.6 | 1123 | 1305 | 26 | - | 1240 | 28 | 27 | M24 | 12 | 7 |
| MFVE602-JIS13 | 1200 | 1219.2 | 1224 | 1420 | 26 | - | 1350 | 32 | 27 | M24 | 12 | 7 |
