Product Name |
Hined A60 Fire Door(Single) | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light opening and easy operation | |||||||||||
|
Passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with fireproof requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Option |
Window / Hose-port | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

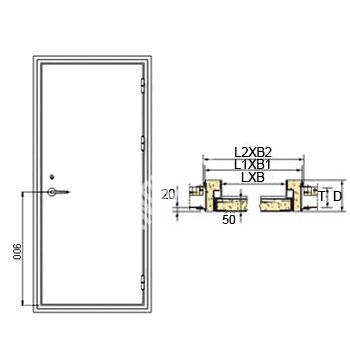

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | Leaf Thickness | Weight | ||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | mm | kg | |||||||
| MOUE010-AK001 | 600¡Á1650 | 700¡Á1750 | 705¡Á1705 | 50 | 112.26 | ||||||
| MOUE010-AK002 | 600¡Á1700 | 700¡Á1800 | 705¡Á1805 | 115.21 | |||||||
| MOUE010-AK003 | 650¡Á1650 | 750¡Á1750 | 755¡Á1755 | 117.83 | |||||||
| MOUE010-AK004 | 650¡Á1700 | 750¡Á1800 | 755¡Á1805 | 121.01 | |||||||
| MOUE010-AK005 | 700¡Á1650 | 800¡Á1750 | 805¡Á1755 | 123.52 | |||||||
| MOUE010-AK006 | 700¡Á1700 | 800¡Á1800 | 805¡Á1805 | 126.74 | |||||||
| MOUE010-AK007 | 700¡Á1750 | 800¡Á1850 | 805¡Á1855 | 129.91 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
