Product Name |
Hinged A30 Fire Door(Single) | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light opening and easy operation | |||||||||||
|
Passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with fireproof requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Option |
Hose-port/Kickout Panel/Window | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

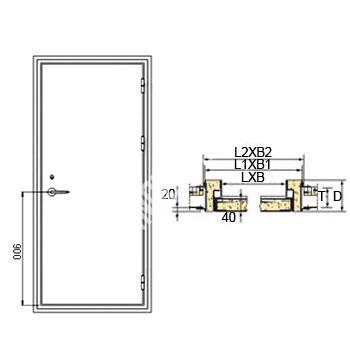

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | Leaf Thickness | Weight | ||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | mm | kg | |||||||
| MOUE010-AI001 | 600¡Á1650 | 700¡Á1750 | 705¡Á1705 | 40 | 106.53 | ||||||
| MOUE010-AI002 | 600¡Á1700 | 700¡Á1800 | 705¡Á1805 | 109.33 | |||||||
| MOUE010-AI003 | 650¡Á1650 | 750¡Á1750 | 755¡Á1755 | 111.71 | |||||||
| MOUE010-AI004 | 650¡Á1700 | 750¡Á1800 | 755¡Á1805 | 114.71 | |||||||
| MOUE010-AI005 | 700¡Á1650 | 800¡Á1750 | 805¡Á1755 | 116.99 | |||||||
| MOUE010-AI006 | 700¡Á1700 | 800¡Á1800 | 805¡Á1805 | 120.03 | |||||||
| MOUE010-AI007 | 700¡Á1750 | 800¡Á1850 | 805¡Á1855 | 123.02 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
