| Product Name |
BS Slip ON Flanges (mm) |
| Product NO. |
Pipe size |
Flanges Date |
Hub date |
Raised face |
Drilling Date |
Radius |
Weight |

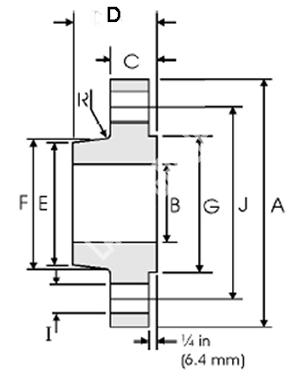

| A |
B |
C |
D |
E |
F |
G |
No. of Holes |
I |
J |
R |
| MFVE601-BS01 |
26 |
971.5 |
666.7 |
88.9 |
193.7 |
693.7 |
727.1 |
749.3 |
28 |
47.6 |
876.3 |
11.11 |
295 |
| MFVE601-BS02 |
28 |
1035 |
717.6 |
95.2 |
206.4 |
746.1 |
782.6 |
800.1 |
28 |
50.8 |
939.8 |
12.7 |
354 |
| MFVE601-BS03 |
30 |
1092.2 |
768.3 |
101.6 |
219.1 |
800.1 |
836.6 |
857.2 |
28 |
54 |
996.9 |
12.7 |
406 |
| MFVE601-BS04 |
32 |
1149.3 |
819.1 |
107.9 |
231.8 |
852.5 |
889 |
914.4 |
28 |
54 |
1054.1 |
12.7 |
465 |
| MFVE601-BS05 |
34 |
1206.5 |
869.9 |
111.1 |
241.3 |
904.9 |
944.6 |
965.2 |
28 |
54 |
1104.9 |
14.29 |
522 |
| MFVE601-BS06 |
36 |
1270 |
920.8 |
114.3 |
250.8 |
958.8 |
1012.3 |
1022.3 |
32 |
54 |
1168.4 |
14.29 |
601 |
