| Product Name | ULTRA-LOW HEADROOM Trolley Hoist | ||||||||||||||||||||
| Product Material | Steel | ||||||||||||||||||||
| Product No. |
Cap. (Tons) |
Headroom C (in) |
Std. Lift (ft) |
Pull to Lift Load (lbs) |
Min. Radius for Curve* (in) |
Flange Width Adjustability B (in) |
Load Chain Dia. (mm) x Chain Fall Lines |
Net Weight Approx. (lbs) |
Shipping Weight Approx. (lbs.) |
Weight for Additional One ft. of lift (ft) | |||||||||||
| Standard | |||||||||||||||||||||
| MHAE063-UD001 | 1 | 4.5 | 20 | 64 | N/A | 2.28 to 6.42 | 5.0 x 2 | 166 | 176 | 2.0 | |||||||||||
| MHAE063-UD002 | 2 | 5.7 | 58 | 3.23 to 8.03 | 7.1 x 2 | 271 | 281 | 2.8 | |||||||||||||
| MHAE063-UD003 | 3 | 6.5 | 74 | 8.0 x 2 | 385 | 395 | 3.1 | ||||||||||||||
| MHAE063-UD004 | 5 | 7.7 | 90 | 3.94 to 8.03 | 9.0 x 2 | 655 | 665 | 3.7 | |||||||||||||
|
Product No. |
Cap. (Tons) |

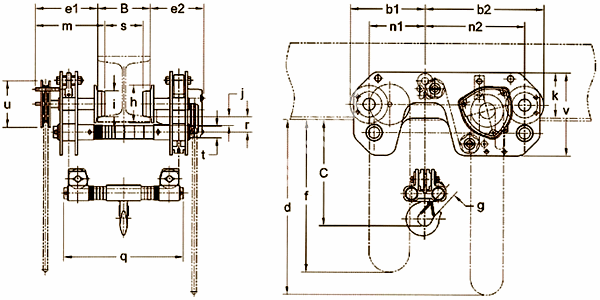

b1 (in) | b2 (in) | d (ft) | e1 (in) | e2 (in) | f (in) | g (in) | h (in) | I (in) | j (in) | k (in) | m (in) | n1 (in) | n2 (in) | q (in) | r (in) | s (in) | t (in) | u (in) | v (in) |
| MHAE063-UD001 | 1 | 8.0 | 13.5 | 19.3 | 7.9 | 7.0 | 19.3 | 1.1 | 4.17 | 2.80 | 1.0 | 4.5 | 8.7 | 5.9 | 11.4 | 14.6 | 1.8 | B-1.6 | 1.22 | 6.02 | 9.6 |
| MHAE063-UD002 | 2 | 9.6 | 15.7 | 19.0 | 8.9 | 7.6 | 19.0 | 1.4 | 5.00 | 3.35 | 1.2 | 6.6 | 9.9 | 7.1 | 13.2 | 17.3 | 2.1 | B-2.0 | 1.42 | 11.4 | |
| MHAE063-UD003 | 3 | 11.6 | 18.3 | 19.0 | 9.5 | 8.1 | 19.0 | 1.7 | 5.83 | 3.94 | 1.3 | 7.0 | 10.6 | 8.7 | 15.4 | 18.3 | 2.4 | B-2.2 | 1.73 | 7.20 | 12.8 |
| MHAE063-UD004 | 5 | 13.8 | 21.3 | 19.0 | 10.5 | 8.8 | 19.0 | 1.8 | 6.65 | 4.65 | 1.4 | 8.8 | 11.9 | 10.4 | 17.9 | 19.5 | 2.8 | B-2.9 | 2.17 | 15.4 | |
