Product Name |
Hinged A0 Fire Door (Single) | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with fireproof requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Option |
Hose-port, A30/A60 fire proof | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

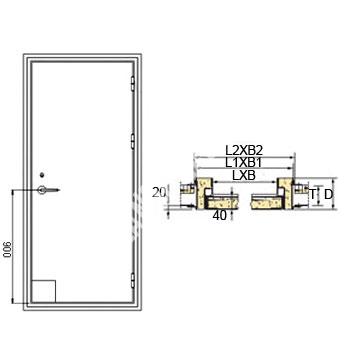

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | Leaf Thickness | Weight | ||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | mm | kg | |||||||
| MOUE010-AA001 | 600¡Á1650 | 700¡Á1750 | 705¡Á1705 | 40 | 61.75 | ||||||
| MOUE010-AA002 | 600¡Á1700 | 700¡Á1800 | 705¡Á1805 | 63.29 | |||||||
| MOUE010-AA003 | 650¡Á1650 | 750¡Á1750 | 755¡Á1755 | 64.51 | |||||||
| MOUE010-AA004 | 650¡Á1700 | 750¡Á1800 | 755¡Á1805 | 66.02 | |||||||
| MOUE010-AA005 | 700¡Á1650 | 800¡Á1750 | 805¡Á1755 | 67.02 | |||||||
| MOUE010-AA006 | 700¡Á1700 | 800¡Á1800 | 805¡Á1805 | 68.77 | |||||||
| MOUE010-AA007 | 700¡Á1750 | 800¡Á1850 | 805¡Á1855 | 70.4 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
