| Product Name | Heavy Duty Lever Hoist | |||||||||||
| Product Material | Steel | |||||||||||
| Serial No. | Capacity (kg) | Number Of Chain Falls | Chain Dimensions (d x p) (mm) | Lift With One Full Lever Turn (mm) | Handle Pull at WLL (daN) | Weight With std. Lift (kg) | ||||||
| MHAE062-LD001 | 800 | 1 | 5.6 x 17.1 | 24 | 26 | 5.5 | ||||||
| MHAE062-LD002 | 1600 | 1 | 7.1 21.2 | 23 | 30 | 9.6 | ||||||
| MHAE062-LD003 | 3200 | 1 | 9 x 27.2 | 16 | 38 | 16 | ||||||
| MHAE062-LD004 | 6300 | 2 | 9 x 27.2 | 8 | 39 | 31 | ||||||

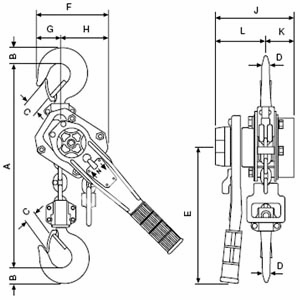

| Dimension | ||||||||||||
| Serial No. | Capacity | A min (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) |
| MHAE062-LD001 | 800kg | 290 | 21 | 24 | 13 | 235 | 120 | 38 | 82 | 142 | 52 | 90 |
| MHAE062-LD002 | 1600kg | 330 | 27 | 31 | 20 | 370 | 138 | 41 | 97 | 163 | 65 | 98 |
| MHAE062-LD003 | 3200kg | 430 | 36 | 35 | 24 | 370 | 177 | 53 | 124 | 185 | 83 | 102 |
| MHAE062-LD004 | 6300kg | 580 | 53 | 46 | 43 | 3750 | 259 | 85 | 174 | 185 | 83 | 102 |
