Marine Door >> Weathertight Door >> Hinged Weathertight Door >> Hinged Radius Corner Weathertight Door (Single)
 |
 | ||||||||||
|
Product Name |
Hinged Radius Corner Weathertight Door (Single) | ||||||||||
|
Description |
Manufactured according to IMO, SOLAS | ||||||||||
|
Available in natural finish, primed or coated in accordance with client request. | |||||||||||
|
Application |
Used for the doorway of superstructure above freeboard deck or deck house and in accordance with ISO 6042-1980 | ||||||||||
|
Material |
Steel / Aluminum | ||||||||||
|
Option |
Radius/mitered corner, Double door leaf, Window/deadlight/port light | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

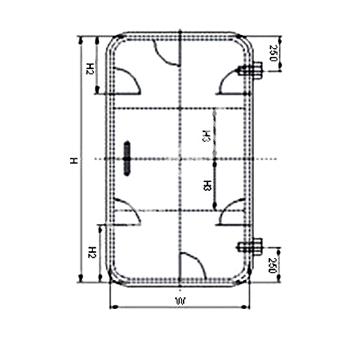

| Specifications | |||||||||||
| Product No. | Nominal Size | Cutout in Steel Wall | Size of Door | Dog NO. | H2 | ||||||
| W¡ÁH | W1¡ÁH1 | ||||||||||
| MOUE010-ER001 | 500¡Á1000 | 600¡Á1100¡ÁR150 | 555¡Á1055 | 6 | 350 | ||||||
| MOUE010-ER002 | 600¡Á1200 | 700¡Á1300¡ÁR150 | 655¡Á1255 | 6 | 350 | ||||||
| MOUE010-ER003 | 600¡Á1400 | 700¡Á1500¡ÁR150 | 655¡Á1455 | 6 | 350 | ||||||
| MOUE010-ER004 | 600¡Á1600 | 700¡Á1700¡ÁR150 | 655¡Á1655 | 6 | 350 | ||||||
| MOUE010-ER005 | 750¡Á1400 | 850¡Á1500¡ÁR150 | 805¡Á1455 | 8 | 350 | ||||||
| MOUE010-ER006 | 750¡Á1600 | 850¡Á1700¡ÁR150 | 805¡Á1655 | 6 | 410 | ||||||
| MOUE010-ER007 | 900¡Á1400 | 1000¡Á1500¡ÁR150 | 955¡Á1455 | 6 | 410 | ||||||
| MOUE010-ER008 | 900¡Á1600 | 1000¡Á1700¡ÁR150 | 955¡Á1655 | 8 | 410 | ||||||
| Sizes and colors will customize according to your requirements | |||||||||||
