Product Name |
Sliding Gastight Door | ||||||||||
|
Description |
Manufactured according to IMO, SOLAS | ||||||||||
|
Designed according to international standards with low noisy and light opening | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request. | |||||||||||
|
Application |
Normally used in wheelhouse, suiTABLE for vessels with low combustion point | ||||||||||
|
Material |
Aluminum / Stainless Steel | ||||||||||
|
Pressure Difference |
100Pa | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||
| Specifications | |||||||||||
| Type | A | Stainless Steel | |||||||||
| B | Aluminum | ||||||||||
| C | Steel Frame, Aluminum Panel | ||||||||||

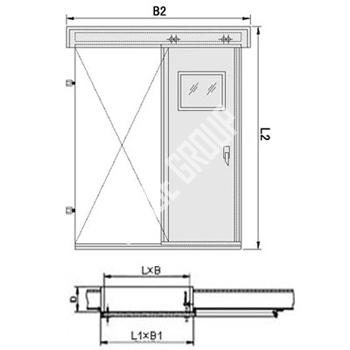

| Product No. | Nominal Size | Cutout in Steel Wall | External Size | D | Weight / kg | ||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | A | B | C | ||||||
| MOUE010-GS001 | 750¡Á1700 | 835¡Á1785 | 1860¡Á2250 | 100~200 | 58 | 42 | 40 | ||||
| MOUE010-GS002 | 900¡Á1700 | 985¡Á1785 | 2160¡Á2250 | 62 | 48 | 46 | |||||
| MOUE010-GS003 | 900¡Á1800 | 985¡Á1885 | 2160¡Á2350 | 66 | 52 | 50 | |||||
| MOUE010-GS004 | 1000¡Á1800 | 1085¡Á1885 | 2360¡Á2360 | 72 | 58 | 56 | |||||
| Sizes and colors will customize according to your requirements | |||||||||||
