Product Name |
Hinged Gastight Door | ||||||||||
|
Description |
Standard gastight door manufactured according to IMO, SOLAS | ||||||||||
|
Good pressure resistance and air tightness | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request. | |||||||||||
|
Application |
SuiTABLE for vessels with low combustion point | ||||||||||
|
Material |
Aluminum / Stainless Steel | ||||||||||
|
Pressure Difference |
500Pa | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

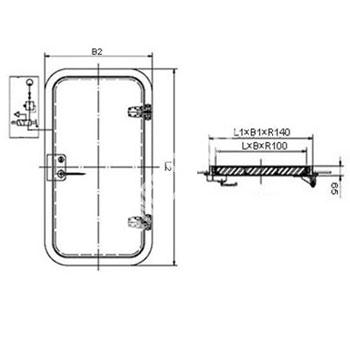

| Specifications | |||||||||||
| Product No. | Nominal Size | Cutout in Steel Wall | External Size | Weight / kg | |||||||
| B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | Stainless Steel | Aluminum | |||||||
| MOUE010-GH001 | 600¡Á1600 | 685¡Á1685 | 770¡Á1770 | 64 | 44 | ||||||
| MOUE010-GH002 | 700¡Á1700 | 785¡Á1785 | 870¡Á1870 | 78 | 52 | ||||||
| MOUE010-GH003 | 800¡Á1800 | 885¡Á1885 | 970¡Á1970 | 92 | 66 | ||||||
| Sizes and colors will customize according to your requirements | |||||||||||
