Product Name |
Gastight A60 Fire Door(Single) | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation, passed standard fire test | |||||||||||
|
Available in natural finish, primed or coated as customer's requirements | |||||||||||
|
Application |
SuiTABLE for bulkhead with A60 fireproof and gastight requirements | ||||||||||
|
External applications without heavy-spay or weathertight demands | |||||||||||
|
Material |
Steel / Stainless Steel | ||||||||||
|
Option |
Portlight / Hose-port | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, ect | ||||||||||

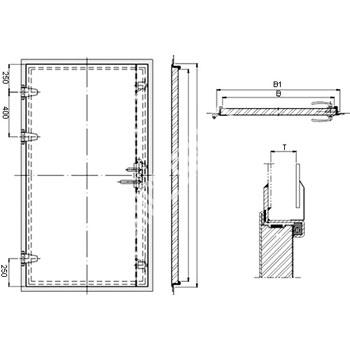

| Specifications | |||||||||||
| Product No. | Nominal Size | External Size | Cutout in Steel Wall | Leaf Thickness | |||||||
| B¡ÁH | B1¡ÁH1 | B2¡ÁH2 | mm | ||||||||
| MOUE010-AN001 | 600¡Á1600 | 750¡Á1750 | 705¡Á1705 | 6 | |||||||
| MOUE010-AN002 | 650¡Á1650 | 800¡Á1800 | 755¡Á1755 | ||||||||
| MOUE010-AN003 | 700¡Á1700 | 850¡Á1850 | 805¡Á1805 | ||||||||
| MOUE010-AN004 | 800¡Á1800 | 950¡Á1950 | 905¡Á1905 | ||||||||
| MOUE010-AN005 | 850¡Á1850 | 1000¡Á2000 | 955¡Á1955 | ||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
