Product Name |
Weathertight Gastight A60 Fire Door (Single) | ||||||||||
Description |
Meet IMO, SOLAS requirements | ||||||||||
Light and easy operation, passed standard fire test | |||||||||||
Available in natural finish, primed or coated as customer's requirements | |||||||||||
Application |
SuiTABLE for bulkhead with A60 fireproof, weathertight and gastight requirements | ||||||||||
Material |
Steel | ||||||||||
Optional Parts |
Portlight, A0 fireproof | ||||||||||
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

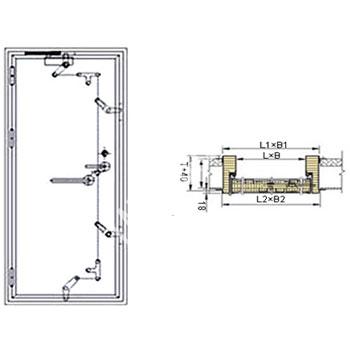

Specifications | |||||||||||
Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | Opening Direction | Weight / kg | ||||||
B¡ÁL | B1¡ÁL1 | B2¡ÁL2 | A0 | A60 | |||||||
MOUE010-AU001 | 600¡Á1600 | 700¡Á1700 | 705¡Á1705 | L/R | 65 | 118 | |||||
MOUE010-AU002 | 650¡Á1650 | 750¡Á1750 | 755¡Á1755 | 70 | 128 | ||||||
MOUE010-AU003 | 700¡Á1700 | 800¡Á1800 | 805¡Á1805 | 75 | 142 | ||||||
MOUE010-AU004 | 800¡Á1750 | 900¡Á1850 | 905¡Á1855 | 80 | 149 | ||||||
Sizes and colors will customize according to your requirements |
