Marine Door >> Watertight Door >> Sliding Watertight Door >> Vertical Sliding Watertight DoorVertical Sliding Watertight Door
 |
 | ||||||||||
|
Product Name |
Vertical Sliding Watertight Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for bulkheads with water tightness requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Doorsill |
Flush Sill | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||
| Specifications | |||||||||||

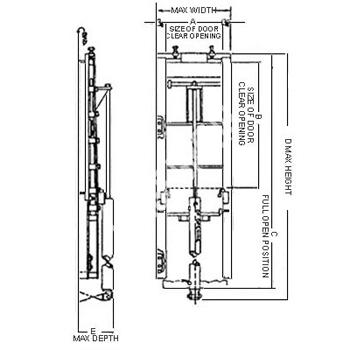

| Product No. | Clear Opening | A | B | C | D | E | |||||
| MOUE010-WV001 | 26''กม66'' | 26'' | 66'' | 142'' | 155'' | 17'' | |||||
| MOUE010-WV002 | 30''กม60'' | 30'' | 60'' | 130'' | 143'' | 16'' | |||||
| MOUE010-WV003 | 30''กม72'' | 30'' | 72'' | 154'' | 167'' | 18'' | |||||
| MOUE010-WV004 | 36''กม66'' | 36'' | 66'' | 142'' | 155'' | 18'' | |||||
| All watertight doors are available in aluminum, steel, stainless steel or a combination of these metals | |||||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
