Marine Valves >> DIN Marine Valves >> Globe Valves >> PN16 Cast Iron Globe ValvePN16 Cast Iron Globe Valve
Product Name PN16 Cast Iron Globe Valve

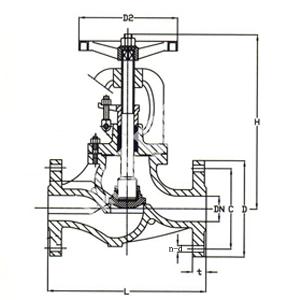

Product NO Size L D C n-d
MFVEJK4 DIN-01 015 130 95 65 4-14
MFVEJK4 DIN-02 020 150 105 76 4-14
MFVEJK4 DIN-03 025 160 115 86 4-14
MFVEJK4 DIN-04 032 180 140 100 4-18
MFVEJK4 DIN-05 040 200 150 110 4-18
MFVEJK4 DIN-06 050 230 165 125 4-18
MFVEJK4 DIN-07 065 290 185 145 4-18
MFVEJK4 DIN-08 080 310 200 160 8-18
MFVEJK4 DIN-09 100 350 220 180 8-18
MFVEJK4 DIN-010 125 400 250 210 8-18
MFVEJK4 DIN-011 150 480 285 240 8-22
MFVEJK4 DIN-012 175 550 315 270 8-22
MFVEJK4 DIN-013 200 600 340 295 12-22
MFVEJK4 DIN-014 250 730 405 355 12-25
MFVEJK4 DIN-015 300 850 460 410 12-25
