Marine Door >> Watertight Door >> Hinged Watertight Door >> 6-Dog Watertight Door6-Dog Hinged Watertight Door
 |
 | ||||||||||
|
Product Name |
6-Dog Hinged Watertight Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for bulkheads with water tightness requirements | ||||||||||
|
Material |
Steel / Aluminum | ||||||||||
|
Optional Parts |
Portlight | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

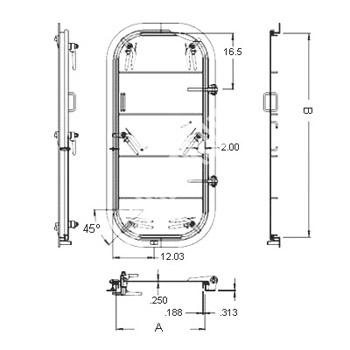

| Specifications | |||||||||||
| Product No. | Clear Opening | Dimentions | Weight | Opening Direction | |||||||
| B¡ÁH | A | B | Ibs | ||||||||
| MOUE010-WS001 | 26''¡Á60'' | 26'' | 60'' | 270 | L/R | ||||||
| MOUE010-WS002 | 30''¡Á60'' | 30'' | 60'' | 300 | |||||||
| MOUE010-WS003 | 30''¡Á66'' | 30'' | 66'' | 330 | |||||||
| MOUE010-WS004 | 30''¡Á72'' | 30'' | 72'' | 350 | |||||||
| All watertight doors are available in aluminum, steel, stainless steel or a combination of these metals | |||||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
