Marine Door >> Watertight Door >> Quick-Acting Watertight Door >> Lever-operated Quick-acting Watertight DoorLever-Operated Quick-Acting Watertight Door
 |
 | ||||||||||
|
Product Name |
Lever-Operated Quick-Acting Watertight Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Good water tightness and convenient opening | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for bulkheads with water tightness requirements | ||||||||||
|
Material |
Steel/stainless steel | ||||||||||
|
Max Pressure |
0.1MPa | ||||||||||
|
Option |
Portlight | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||
| Specifications | |||||||||||

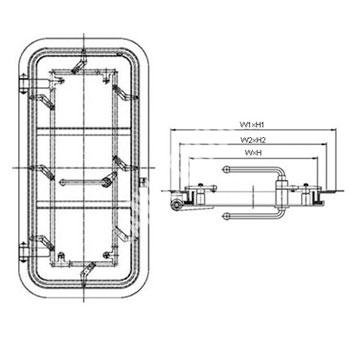

| Product No. | Nominal Size | Cutout in Steel Wall | Size of Frame | Leaf Thickness | Weight / kg | ||||||
| W¡ÁH | W1¡ÁH1¡ÁR | W2¡ÁH2 | 6 | 8 | 10 | ||||||
| MOUE010-WL001 | 600¡Á1200 | 660¡Á1260¡ÁR130 | 655¡Á1255 | 6,8,10 | 127 | 152 | 183 | ||||
| MOUE010-WL002 | 600¡Á1400 | 660¡Á1460¡ÁR130 | 655¡Á1455 | 151 | 169 | 189 | |||||
| MOUE010-WL003 | 600¡Á1600 | 660¡Á1660¡ÁR130 | 655¡Á1655 | 156 | 175 | 196 | |||||
| MOUE010-WL004 | 750¡Á1400 | 810¡Á1460¡ÁR130 | 805¡Á1455 | 166 | 188 | 213 | |||||
| MOUE010-WL005 | 750¡Á1600 | 810¡Á1660¡ÁR130 | 805¡Á1655 | 175 | 197 | 223 | |||||
| MOUE010-WL006 | 900¡Á1400 | 960¡Á1460¡ÁR130 | 955¡Á1455 | 192 | 217 | 246 | |||||
| MOUE010-WL007 | 900¡Á1600 | 960¡Á1660¡ÁR130 | 955¡Á1655 | 213 | 242 | 275 | |||||
| All watertight doors are available in aluminum, steel, stainless steel or a combination of these metals | |||||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
