Marine Door >> Watertight Door >> Hydraulic Watertight Door >> Hydraulic Sliding Watertight DoorHydraulic Sliding Watertight Door
 |
 | ||||||||||
|
Product Name |
Hydraulic Sliding Watertight Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Normal pump unit can be separately installed beside the door or other position. | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for engine&steering gear rooms with watertight bulkhead | ||||||||||
|
Material |
Aluminum / Steel | ||||||||||
|
Type |
Integrated / Normal | ||||||||||
|
Max Pressure |
0.1MPa | ||||||||||
|
Option |
A0 / A60 Class Fireproof | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

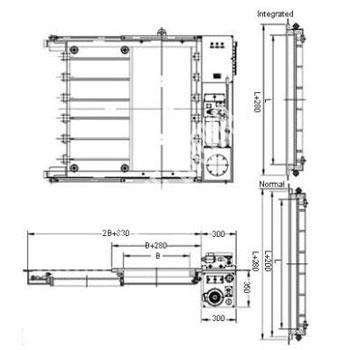

| Specifications | |||||||||||
| Product No. | Nominal Size | External Size | Cutout in Steel Wall | ||||||||
| BกมL | (B+280) / (2B+830) กม (L+280) | Normal | Integrated | ||||||||
| (B+200) กม (L+200) | (B+580) กม (L+280) | ||||||||||
| MOUE010-WZ001 | 500กม1000 | 780/1830กม1280 | 700กม1200 | 1080กม1280 | |||||||
| MOUE010-WZ002 | 600กม1200 | 880/2030กม1480 | 800กม1400 | 1180กม1480 | |||||||
| MOUE010-WZ003 | 700กม1400 | 980/2230กม1680 | 900กม1600 | 1280กม1680 | |||||||
| MOUE010-WZ004 | 700กม1600 | 980/2230กม1880 | 900กม1800 | 1280กม1880 | |||||||
| MOUE010-WZ005 | 700กม1800 | 980/2230กม2080 | 900กม2000 | 1280กม2080 | |||||||
| MOUE010-WZ006 | 800กม2000 | 1080/2430กม2280 | 1000กม2200 | 1380กม2280 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
