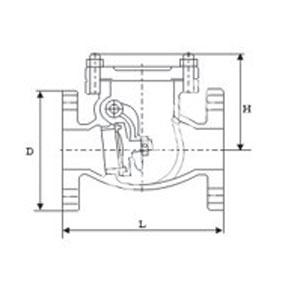

| Cast Iron Check Valve | ||||
| Product No. | DN | L (inch) | H(inch) | D(inch) |
| MFVEHQ4-ANO11 | 40 | 7.5 | 4 | 5 |
| MFVEHQ4-ANO12 | 50 | 8 | 4 | 6 |
| MFVEHQ4-ANO13 | 65 | 8.5 | 4.5 | 7 |
| MFVEHQ4-ANO14 | 80 | 9.5 | 5.5 | 7.5 |
| MFVEHQ4-ANO15 | 100 | 11.5 | 6 | 9 |
| MFVEHQ4-ANO16 | 125 | 13 | 6.7 | 10 |
| MFVEHQ4-ANO17 | 150 | 14 | 8 | 11 |
| MFVEHQ4-ANO18 | 200 | 19.5 | 9.7 | 13.5 |
| MFVEHQ4-ANO19 | 250 | 24.5 | 11.5 | 16 |
| MFVEHQ4-ANO20 | 300 | 27.5 | 13 | 19 |
