Marine Window >> Aluminum Window >> Aluminum Sliding Window >> Aluminum Single Sliding WindowAluminum Single Sliding Window
  | |||||
| Product Name | Aluminium Single Sliding Window | ||||

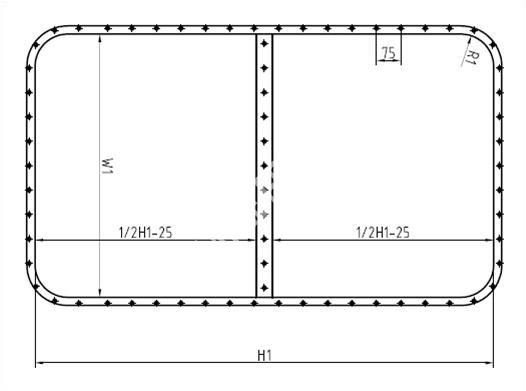

| Type | Size Of Clear | Size Of Outside | Size Of Opening | Round Angle | Depth Of Frame(mm) |
| W*H(mm) | W1*H1(mm) | W2*H2(mm) | Window(mm) | ||
| AF AY BF BY CF CY F(Square angle) Y(Round angle) |
500*300 | 600*400 | 558*358 | R90 | 80-120 |
| 700*400 | 800*500 | 758*458 | |||
| 800*500 | 900*600 | 858*558 | |||
| 900*600 | 1000*700 | 958*658 | |||
| 1000*700 | 1100*800 | 1058*758 | |||
| 1200*800 | 1300*900 | 1258*858 | |||
| 1400*800 | 1500*900 | 1458*858 | |||
