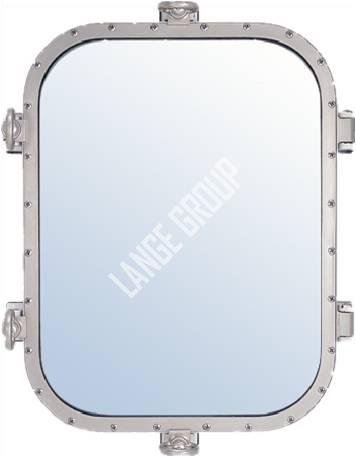

Marine Window >> Ordinary Rectangular Window >> Opening Rectangular Window >> Opening Welded Rectangular WindowOpening Welded Rectangular Window
   | ||||||
| Product Name | Opening Welded Rectangular Window | |||||

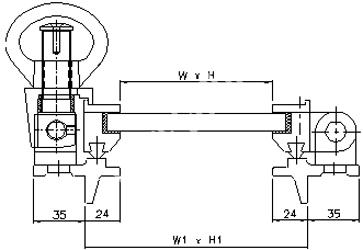

| Product Number | Series | Type | NominalSize(mm) | Opening Size(mm) | Opening Type | |
| W*H | W1*H1 | d | ||||
| MOUE020-RW041 | Regular Fire-resistant Heated | Heavey Light | 300*425 | 348*473 | 75 |
ILW IRW ITW OLW ORW OTW (I-inwards.L-lefthand.W-welded.R-righthand.T-tophinged) |
| MOUE020-RW042 | 355*500 | 403*548 | 75 | |||
| MOUE020-RW043 | 400*560 | 448*608 | 75 | |||
| MOUE020-RW044 | 450*630 | 498*678 | 90 | |||
| MOUE020-RW045 | 500*710 | 548*758 | 90 | |||
| MOUE020-RW046 | 560*800 | 608*848 | 90 | |||
| MOUE020-RW047 | 900*630 | 948*678 | 100 | |||
| MOUE020-RW048 | 1000*710 | 1048*758 | 100 | |||
| MOUE020-RW049 | 1100*800 | 1148*848 | 100 | |||
