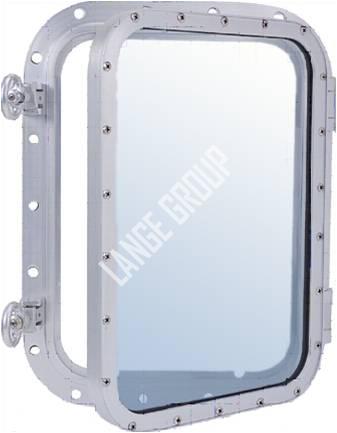

Marine Window >> Ordinary Rectangular Window >> Opening Rectangular Window >> Opening Bolted Rectangular WindowOpening Bolted Rectangular Window
   |
||||||||
| Product Name | Opening Bolted Rectangular Window | |||||||

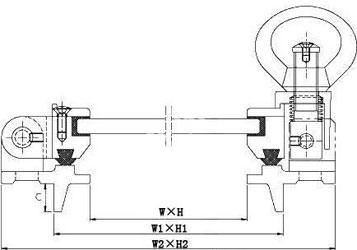

| Product Number | Series | Type | Nominal Size(mm) | Size Of Opening(mm) | Frame(mm) | Opening Type | ||
| W*H | W1*H1 | C | W2*H2 | R |
ILB IRB ITB OLB ORB OTB | |||
| MOUE020-RW021 | Regular Fire-resistant Heated | Heavy Light | 300*425 | 348*473 | 19.25 | 418*543 | 76 | |
| MOUE020-RW022 | 355*500 | 403*548 | 19.25 | 473*618 | 76 | |||
| MOUE020-RW023 | 400*560 | 448*608 | 19.25 | 518*678 | 76 | |||
| MOUE020-RW024 | 450*630 | 498*678 | 19.25 | 568*748 | 126 | |||
| MOUE020-RW025 | 500*710 | 548*758 | 19.25 | 618*838 | 126 | |||
| MOUE020-RW026 | 560*800 | 608*848 | 19.25 | 678*918 | 126 | |||
| MOUE020-RW027 | 900*630 | 948*678 | 19.25 | 1018*748 | 126 | |||
| MOUE020-RW028 | 1000*710 | 1048*758 | 19.25 | 1118*828 | 126 | |||
| MOUE020-RW029 | 1100*800 | 1148*848 | 19.25 | 1218*918 | 126 | |||
