Marine Ladder >> Rope Ladder >> Embarkation Ladder >> Wooden Embarkation LadderWooden Embarkation Ladder
 |
 | ||

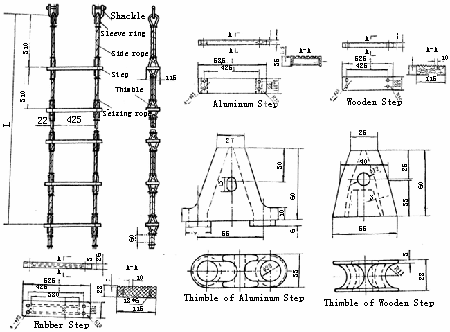

| Wooden Embarkation Ladder | |||
| Step | Hardwood(The 4 Lower Steps of Ladder is Made of Rubber) | ||
| Spreader | Hardwood | ||
| Rope | Abaca Rope / Fiber Rope | ||
| Space Between Rungs | 300-350mm | ||
| Specification | |||
| Product No. | Steps | L | Weight |
| mm | kg | ||
| MOUE040-WEL001 | 10 | 3100 | 31.56 |
| MOUE040-WEL002 | 15 | 4650 | 43.92 |
| MOUE040-WEL003 | 20 | 6200 | 56.28 |
| MOUE040-WEL004 | 25 | 7750 | 68.64 |
| MOUE040-WEL005 | 30 | 9300 | 81 |
| MOUE040-WEL006 | 35 | 10850 | 93.36 |
| MOUE040-WEL007 | 40 | 12400 | 105.72 |
| MOUE040-WEL008 | 45 | 13950 | 118.08 |
| MOUE040-WEL009 | 50 | 15500 | 130.44 |
| MOUE040-WEL010 | 55 | 17000 | 142.86 |
| MOUE040-WEL011 | 60 | 18500 | 155.16 |
| Available in various sizes, please specify your requirement to us. | |||
