Product Name |
Open Spelter Socket | |||||||||||||
|
Product Material |
Galvanized Steel | |||||||||||||

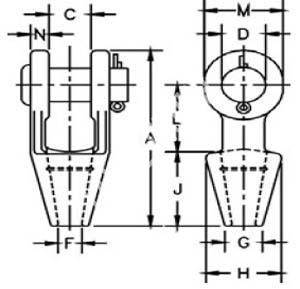

| Product No. | Rope Dia. | Structure Strand Dia. | Ultimate Load | Weight Each | Dimensions (in.) | |||||||||
| mm | in. | t | Ibs | A | C | D | F | G | H | J | L | M | N | |
| MHAE041-SO001 | 6-7 | - | 4.5 | 1.10 | 4.56 | 0.75 | 0.69 | 0.38 | 0.69 | 1.56 | 2.25 | 1.56 | 1.31 | 0.36 |
| MHAE041-SO002 | 8-10 | - | 12 | 1.30 | 4.84 | 0.81 | 0.81 | 0.50 | 0.81 | 1.69 | 2.25 | 1.75 | 1.50 | 0.44 |
| MHAE041-SO003 | 11-13 | - | 20 | 2.25 | 5.56 | 1.00 | 1.00 | 0.56 | 0.94 | 1.88 | 2.50 | 2.00 | 1.88 | 0.50 |
| MHAE041-SO004 | 14-16 | 1/2 | 27 | 3.60 | 6.75 | 1.25 | 1.19 | 0.69 | 1.13 | 2.25 | 3.00 | 2.50 | 2.25 | 0.56 |
| MHAE041-SO005 | 18 | 9/16-5/8 | 43 | 5.83 | 7.94 | 1.50 | 1.38 | 0.81 | 1.25 | 2.62 | 3.50 | 3.00 | 2.62 | 0.62 |
| MHAE041-SO006 | 20-22 | 11/16-3/4 | 55 | 9.65 | 9.25 | 1.75 | 1.63 | 0.94 | 1.50 | 3.25 | 4.00 | 3.50 | 3.13 | 0.80 |
| MHAE041-SO007 | 24-26 | 13/16-7/8 | 78 | 15.50 | 10.56 | 2.00 | 2.00 | 1.13 | 1.75 | 3.75 | 4.50 | 4.00 | 3.75 | 0.88 |
| MHAE041-SO008 | 28-30 | 15/16-1 | 92 | 21.50 | 11.81 | 2.25 | 2.25 | 1.25 | 2.00 | 4.12 | 5.00 | 4.62 | 4.12 | 1.00 |
| MHAE041-SO009 | 32-35 | 1-1/16-1-1/8 | 136 | 31.00 | 13.19 | 2.50 | 2.50 | 1.50 | 2.25 | 4.75 | 5.50 | 5.00 | 4.75 | 1.13 |
| MHAE041-SO010 | 38 | 1-3/16-1-1/4 | 170 | 47.25 | 15.12 | 3.00 | 2.75 | 1.63 | 2.75 | 5.25 | 6.00 | 6.00 | 5.38 | 1.19 |
| MHAE041-SO011 | 40-42 | 1-5/16-1-3/8 | 188 | 55.00 | 16.25 | 3.00 | 3.00 | 1.75 | 3.00 | 5.50 | 6.50 | 6.50 | 5.75 | 1.31 |
| MHAE041-SO012 | 44-48 | 1-7/16-1-5/8 | 268 | 82.00 | 18.25 | 3.50 | 3.50 | 2.00 | 3.13 | 6.38 | 7.50 | 7.00 | 6.50 | 1.56 |
| MHAE041-SO013 | 50-54 | 1-11/16-1-3/4 | 291 | 129.00 | 21.50 | 4.00 | 3.75 | 2.25 | 3.75 | 7.38 | 8.50 | 9.00 | 7.00 | 1.81 |
| MHAE041-SO014 | 56-60 | 1-13/16-1-7/8 | 360 | 167.00 | 23.50 | 4.50 | 4.25 | 2.50 | 4.00 | 8.25 | 9.00 | 10.00 | 7.75 | 2.13 |
| MHAE041-SO015 | 64-67 | 1-15/16-2-1/8 | 424 | 252.00 | 25.50 | 5.00 | 4.75 | 2.88 | 4.50 | 9.25 | 9.75 | 10.75 | 8.50 | 2.38 |
| MHAE041-SO016 | 70-73 | 2-3/16-2-7/16 | 511 | 315.00 | 27.25 | 5.25 | 5.00 | 3.12 | 4.88 | 10.50 | 11.00 | 11.00 | 9.00 | 2.88 |
| MHAE041-SO017 | 75-80 | 2-1/2-2-5/8 | 563 | 380.00 | 29.00 | 5.75 | 5.25 | 3.38 | 5.25 | 11.12 | 12.00 | 11.25 | 9.50 | 3.00 |
| MHAE041-SO018 | 82-86 | 2-3/4-2-7/8 | 722 | 434.00 | 30.88 | 6.25 | 5.50 | 3.62 | 5.75 | 11.88 | 13.00 | 11.75 | 10.00 | 3.12 |
| MHAE041-SO019 | 88-92 | 3-3-1/8 | 779 | 563.00 | 33.25 | 6.75 | 6.00 | 3.88 | 6.50 | 12.38 | 14.00 | 12.50 | 10.75 | 3.25 |
| MHAE041-SO020 | 94-102 | - | 875 | 783.00 | 36.25 | 7.50 | 7.00 | 4.25 | 7.25 | 13.62 | 15.00 | 13.50 | 12.50 | 3.50 |
