| Product Name | Hydraulic Hose Reel | ||||
| Product No. | MOME206-HHR1 | MOME206-HHR2 | MOME206-HHR3 | MOME206-HHR4 | MOME206-HHR5 |

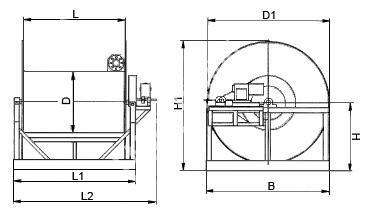

| D (m) | 6 | 11 | 15 | 15 | 15 |
| D1 (m) | 14 | 17 | 23 | 27 | 27 |
| L (m) | 11 | 13 | 16 | 26 | 30 |
| L1 (m) | 15 | 17 | 20 | 30 | 34 |
| L2 (m) | 18 | 20 | 23 | 33 | 38 |
| B (m) | 14 | 17 | 22 | 28 | 30 |
| H (m) | 8 | 10 | 12 | 15 | 15 |
| H1 (m) | 15 | 18 | 23 | 29 | 29 |
| Max Dia. of Hose (mm) | 76 | 102 | 152 | 203 | 254 |
| Max Length of Hose(m) | 76 | 61 | 61 | 152 | 152 |
| Remarks: We can customize the dimension and the power system according to your requests. | |||||
