Marine Valves >> ASME/ANSI/API Marine Valves >> Check Valves >> ANSI Cast Steel Flanges Swing Check Valve-Class600-2500
  | ||||||||

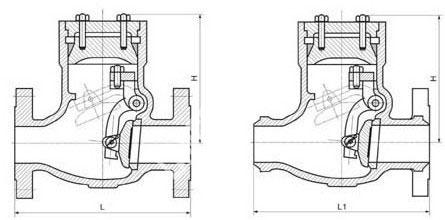

| SWING Check Valve | ||||||||
| Product No. | Size | L | L1 | H | ||||
| MFVEHC4-AN011 | 2 | 292 | 178 | 240 | ||||
| MFVEHC4-AN012 | 2 1/2 | 330 | 216 | 265 | ||||
| MFVEHC4-AN013 | 3 | 355 | 245 | 275 | ||||
| MFVEHC4-AN014 | 4 | 431 | 304 | 325 | ||||
| MFVEHC4-AN015 | 5 | 508 | 381 | 370 | ||||
| MFVEHC4-AN016 | 6 | 558 | 457 | 425 | ||||
| MFVEHC4-AN017 | 8 | 660 | 584 | 500 | ||||
| MFVEHC4-AN018 | 10 | 787 | 711 | 555 | ||||
| MFVEHC4-AN019 | 12 | 838 | 812 | 610 | ||||
| MFVEHC4-AN020 | 14 | 889 | 889 | 725 | ||||
| MFVEHC4-AN021 | 16 | 991 | 991 | 755 | ||||
| MFVEHC4-AN022 | 18 | 1092 | 1092 | 850 | ||||
| MFVEHC4-AN023 | 20 | 1194 | 1194 | 925 | ||||
