Product Name |
Stainless Steel Thimbles SP67 | ||||||||
|
Product Material |
Stainless Steel | ||||||||

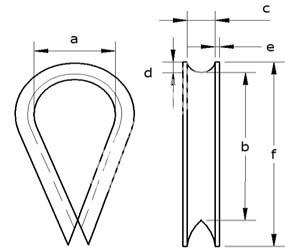

| Product No. | Dimensions/No. | diameter | a | b | c | d | e | f | Net weight |
| mm | mm | mm | mm | mm | mm | mm | g | ||
| MHAE041-TS001 | 1 | 2 | 8.9 | 17.8 | 3 | 2 | 0.6 | 24 | 3 |
| MHAE041-TS002 | 2 | 3 to 4 | 10.2 | 20.3 | 4.3 | 2.8 | 0.6 | 27 | 4 |
| MHAE041-TS003 | 3 | 3.5 to 4.5 | 12.7 | 25.4 | 5.3 | 3.3 | 0.7 | 35 | 5 |
| MHAE041-TS004 | 4 | 5 | 15.2 | 30.5 | 6.1 | 3.9 | 0.9 | 4 | 6 |
| MHAE041-TS005 | 5 | 6 | 17.8 | 35.6 | 6.9 | 4.3 | 0.9 | 48 | 7 |
| MHAE041-TS006 | 6 | 7 | 20.3 | 40.6 | 7.6 | 4.8 | 0.9 | 54 | 8 |
| MHAE041-TS007 | 7 | 8 | 22.9 | 45.7 | 8.4 | 5.3 | 1.2 | 57 | 8 |
|
Note: | |||||||||
