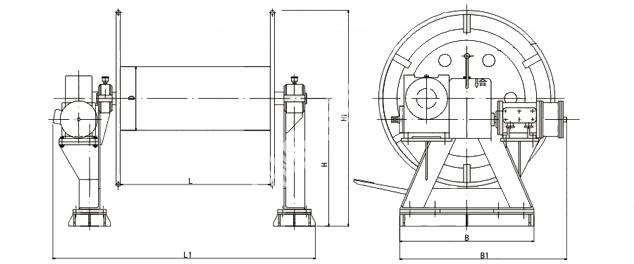

| Product Name | JIS F 3430-1980 Vessel/Ship Electrical Steel Wire Storage Reel (A Serial) | |
| Product No. | MOME206-EA26 | MOME206-EA32 |
| D (mm) | 300 | 360 |
| D1 (mm) | 870 | 1050 |
| L (mm) | 550 | 650 |
| L1 (mm) | 1330 | 1430 |
| B (mm) | 1120 | 1120 |
| B1 (mm) | 1360 | 1450 |
| H (mm) | 730 | 800 |
| H1 (mm) | 1175 | 1330 |
| Weight (kg) | 545 | 575 |
| Max Dia. Of Steel Wire (mm) | 26 | 32 |
| Max Length of Steel Wire (m) | 220 | 210 |
| Motor | JZ2-H-23-4/12 | JZ2-H-23-4/12 |
