Marine Valves >> ASME/ANSI/API Marine Valves >> Globe Valves >> API Cast Iron Globe ValveAPI Cast Iron Globe Valve-Class600

Product Name	Globe Valve
Design and Manufacture	ANSI B16.34 BS1873
Face To Face(end to end):	ANSI B16.10
Flangesd connection	ANSI B16.5
Butt Welded end	ANSI B16.25
Material	ASTM A216 WCB	A217 WC6	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M
Pressure	Class 600

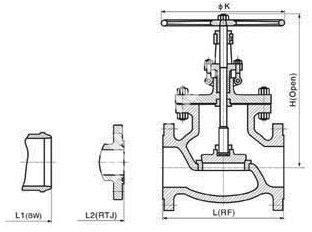

Product No.	Size	L,L1 RF,BW	L2,RTJ	H	K	Weight
	inch	mm	mm	mm	mm	kg
MFVEJC4-AN012	2	292	295	420	250	39
MFVEJC4-AN013	2½	330	333	490	300	61
MFVEJC4-AN014	3	356	359	550	300	76
MFVEJC4-AN015	4	432	435	590	350	122
MFVEJC4-AN016	5	508	511	620	500	210
MFVEJC4-AN017	6	559	562	700	50	245
MFVEJC4-AN018	8	660	664	950	600	447
MFVEJC4-AN019	10	787	791	1140	600	692
