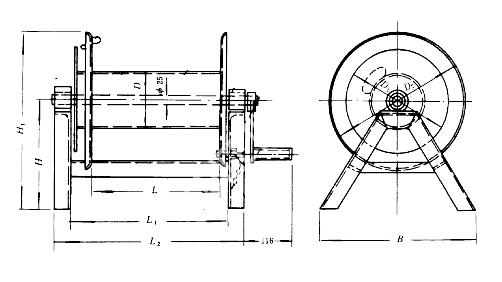

Marine Reel >> Storage Reel >> Cable Reel >> Cable Reel-B TypeJIS F 3430-1980 Cable Storage Reel (B Serial)
|
| ||
| Product Name | JIS F 3430-1980 Vessel/Ship Cable Storage Reel (B Serial) | |
| Product No. | MOME206-CB16 | MOME206-CB22 |
| D (mm) | 150 | 150 |
| D1 (mm) | 300 | 320 |
| D2 (mm) | 400 | 550 |
| L (mm) | 380 | 490 |
| L1 (mm) | 437 | 559 |
| L2 (mm) | 517 | 639 |
| B (mm) | 350 | 450 |
| H (mm) | 250 | 329 |
| H1(mm) | 450 | 604 |
| Weight (kg) | 25 | 30.5 |
| Max Dia. Of cable (mm) | 12.7/16 | 20.3/22 |
| Max Length of cable (m) | 125-150 | 180-200 |
