Marine Valves >> ASME/ANSI/API Marine Valves >> Globe Valves >> ANSI 300 PSI Bronze Thread Globe ValveANSI 300 PSI Marine Bronze Thread Globe Valve
 |
 | |||||||
| ANSI 300 PSI Marine Bronze Thread Globe Valve | ||||||||
| Threaded | BS21(ISO/7) | ANSI/ASME B1.20.1 | ||||||
| Material | Bronze | |||||||
| Pressure | 300PSI | |||||||

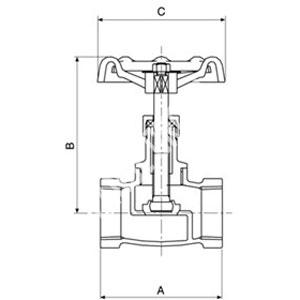

| Product No. | Nominal Size | A | B | C | ||||
| mm | inch | mm | inch | mm | inch | mm | inch | |
| MFVEJT1-AN01 | 15 | 1/2 | 52 | 2 1/16 | 72 | 2 13/16 | 57 | 2 1/4 |
| MFVEJT1-AN01 | 20 | 3/4 | 64 | 2 1/2 | 84 | 3 5/16 | 72 | 2 13/16 |
| MFVEJT1-AN01 | 25 | 1 | 76 | 3 | 94 | 3 11/16 | 78 | 3 1/16 |
| MFVEJT1-AN01 | 32 | 1 1/4 | 83 | 3 1/4 | 110 | 4 5/16 | 97 | 3 13/16 |
| MFVEJT1-AN01 | 40 | 1 1/2 | 98 | 3 7/8 | 126 | 4 15/16 | 108 | 4 1/4 |
| MFVEJT1-AN01 | 50 | 2 | 118 | 4 5/8 | 153 | 6 | 126 | 4 15/16 |
