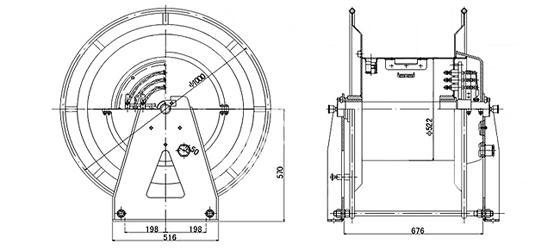

Marine Reel >> Storage Reel >> Cable Reel >> Cable Reel-A TypeJIS F 3430-1980 Cable Storage Reel (A Serial)
 | |
| Product Name | JIS F 3430-1980 Cable Storage Reel (A Serial) |
| Product No. | MOME206-CA28 |
| D (mm) | 522 |
| D1 (mm) | 1000 |
| L (mm) | 586 |
| L1 (mm) | 776 |
| B (mm) | 516 |
| B1 (mm) | 198 |
| H (mm) | 570 |
| Weight (kg) | 95 |
| Max Dia. Of Fiber (mm) | 27.6 |
| Max Length of Steel Wire(m) | 150 |
