Marine Reel >> Storage Reel >> JIS Steel Wire Reel >> JIS F 3430-1980 Steel Wire Reel-B TypeJIS F 3430-1980 Vessel/Ship Steel Wire Storage Reel (B Serial)
 | ||

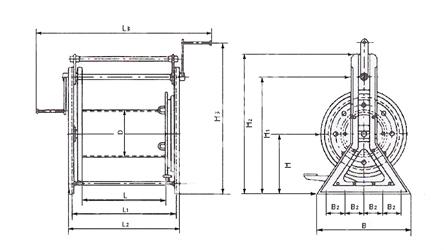

| Product Name | JIS F 3430-1980 Vessel/Ship Steel Wire Storage Reel (B Serial) | |
| Product No. | MOME206-B13 | MOME206-B17 |
| D (mm) | 510 | 620 |
| D1(mm) | 936 | 20 |
| D2 (mm) | 1008 | 1032 |
| L (mm) | 750 | 1100 |
| L1 (mm) | 972 | 1326 |
| L2 (mm) | 1032 | 1386 |
| L3 (mm) | 1656 | 2010 |
| B (mm) | 910 | 1000 |
| B1 (mm) | 1085 | 1220 |
| H (mm) | 584 | 584 |
| H1 (mm) | 1148 | 1160 |
| H2 (mm) | 1303 | 1315 |
| H3 (mm) | 1488 | 1500 |
| Weight (kg) | 337 | 394 |
| Max Dia. Of Steel Wire (mm) | 39 | 47.5 |
| Max Length of Steel Wire (m) | 210 | 230 |
