Cutter Suction Dredger Equipment >> Cutting System >> Cutter Head Gearbox >> Marine gearbox for dredger
 |
 | ||||||||||
|

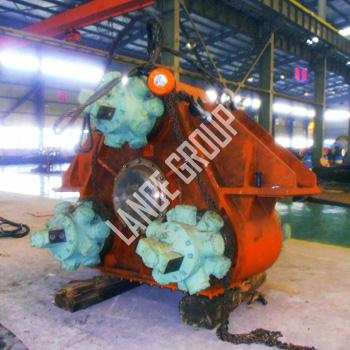

Marine gearbox for dredger | |||||||||||
|
* Capacity:55kw-4500kw | |||||||||||
|
* Long working life | |||||||||||
|
* Easy to maintain & to be mounted | |||||||||||
|
* High torque | |||||||||||
|
* Material:Q345-2G30Mn-20CrMnMo | |||||||||||
|
* Used for cutter head and dredging pump of dredger | |||||||||||
| Product No. | Input power | Input speed | Output speed | Application | |||||||
| MDRE080-GD001 | 850KW | 1000RPM | 30RPM | 1500CBM cutter head gearbox | |||||||
| MDRE080-GD002 | 1150KW | 1000RPM | 30RPM | 2000CBM cutter head gearbox | |||||||
| MDRE080-GD003 | 1300KW | 1000RPM | 30RPM | 2500CBM cutter head gearbox | |||||||
| MDRE080-GD004 | 1500KW | 1000RPM | 30RPM | 3000CBM cutter head gearbox | |||||||
| MDRE080-GD005 | 1700KW | 1000RPM | 30RPM | 3500CBM cutter head gearbox | |||||||
| MDRE080-GD006 | 2050KW | 1000RPM | 30RPM | 4000CBM cutter head gearbox | |||||||
| MDRE080-GD007 | 2350KW | 1000RPM | 30RPM | 4500CBM cutter head gearbox | |||||||
| MDRE080-GD008 | 2650KW | 1000RPM | 30RPM | 5000CBM cutter head gearbox | |||||||
| MDRE080-GD009 | 3150KW | 1000RPM | 30RPM | 6000CBM cutter head gearbox | |||||||
| MDRE080-GD010 | 1400KW | 1000RPM | 300RPM | 1500CBM dredge pump gearbox | |||||||
| MDRE080-GD011 | 1800KW | 1000RPM | 300RPM | 2000CBM dredge pump gearbox | |||||||
| MDRE080-GD012 | 2200KW | 1000RPM | 300RPM | 2500CBM dredge pump gearbox | |||||||
| MDRE080-GD013 | 2600KW | 1000RPM | 300RPM | 3000CBM dredge pump gearbox | |||||||
| MDRE080-GD014 | 3100KW | 1000RPM | 300RPM | 3500CBM dredge pump gearbox | |||||||
| MDRE080-GD015 | 3400KW | 1000RPM | 300RPM | 4000CBM dredge pump gearbox | |||||||
| MDRE080-GD016 | 3800KW | 1000RPM | 300RPM | 4500CBM dredge pump gearbox | |||||||
| MDRE080-GD017 | 4400KW | 1000RPM | 300RPM | 5000CBM dredge pump gearbox | |||||||
| MDRE080-GD018 | 5600KW | 1000RPM | 300RPM | 6000CBM dredge pump gearbox | |||||||
